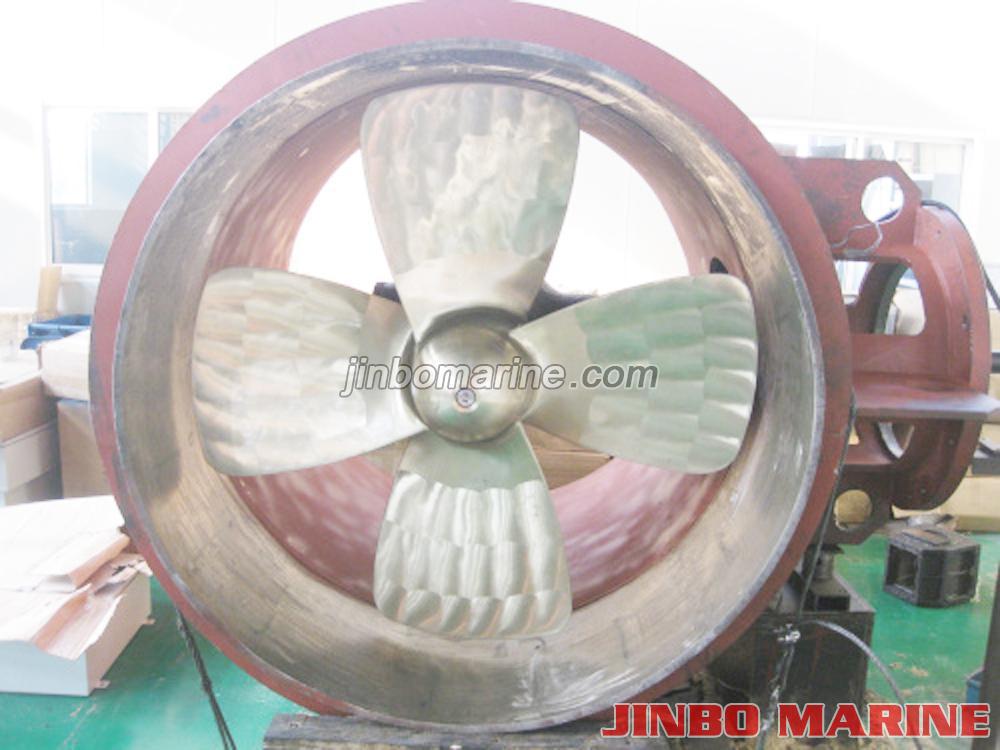

Electrical Tunnel Thruster

Catalog:Tunnel Thruster
Material:Steel, Cu
Certificate:ABS, CCS, BV,DNV,CCS

Add to Wishlist loading
Product added! Browse Wishlist
The product is already in the wishlist! Browse Wishlist
  • Share
  • Facebook
  • Google Plus
  • Twitter
Category: Tunnel Thruster
  • Description
  • Specification

Description

Tunnel thruster is installed on the bow or stern and improve the maneuvering when ship harbor and low-speed situation, emergency steering and under the zero or low speed dynamic positioning thrust is installed on the bow or stern purpose is to improve the ship into the harbor, low-speed maneuvering, emergency steering and the dynamic positioning under the zero or low speed

Tunnel thruster to improve docking, slow speed maneuvering, emergency steering and the dynamic positioning under the zero or low speed, which installed in the bow or stern of ship.

Input Speed (rpm) 1470 1170 1470 1170 1470 1170 1470 1170 1470 1170 1770 1470 1470 1170 1170 970
Frequncy(Hz) 50 60 50 60 50 60 50 60 50 60 60 50 50 60 60 50
Input Power Max.(kw) 63/86 50/68 125/170 100/136 200/272 200/272 280/380 280/380 420/570 336/457 550/748 550/748 900/1224 725/986 1250/1700 1000/1360
Max. Thrust(KN) 9.5 7.9 17.5 14.5 28 28 42 42 63 51 72 72 125 110 183 155
Standard Inner Dia(mm) 1000 1000 1000 1000 1000 1000 1500 1500 1500 1500 1500 1500 2000 2000 2500 2500
Tunnel thicknessmm 12 12 12 12 15 15 20 20 20 20 20 20 20 20 20 20
Propeller Dia.(mm) 500 500 630 630 800 800 1000/1100 1000/1100 1300 1300 1500 1500 1750 1750 2100 2100
Weight(kgs) 300 300 430 430 730 730 1450 1450 1510 1510 2450 2450 2680 2680 3200 3200
