Hydraulic-Rudder-propeller

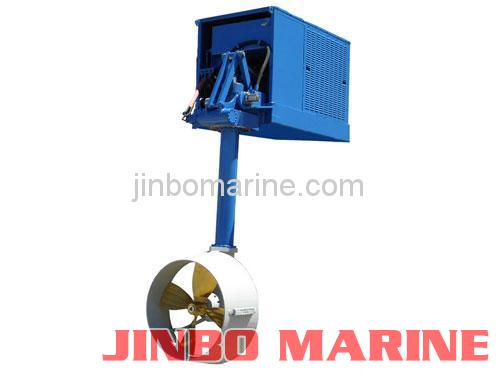

Hydraulic Rudder Propeller

  • Certificate:ABS,BV,DNV,LR,CCS etc.
  • Place of Origin:China
Add to Wishlist loading
Product added! Browse Wishlist
The product is already in the wishlist! Browse Wishlist
  • Share
  • Facebook
  • Google Plus
  • Twitter
Category: Marine Rudder
  • Description
  • Specification

Description

Hydraulic Rudder
Propeller with diesel or electric hydraulic drives.

The hydraulic drive is
especially suited for shallow, brown water applications.

The hydraulic drive
provides fully proportional propeller speed control in forward and reverse
while the engine runs at constant speed.

Model Power Rating Dia of propeller Thrust
(HP) (mm) (t)
HP50 0-50 620 0-0.7
HP100 50-100 830 1-1.4
HP200 100-200 950 1.5-3.2
HP300 200-300 1000 3.4-4.4
HP400 300-400 1180 4.7-6.2
HP500 400-500 1300 6.5-7.7
